Experiments 3/5 - Electric circuits simulating inductances





A serious technical problem is represented by the design of high values inductances, needed in the analog circuits.

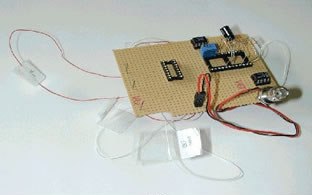

As the involved powers are very high, we are assembling the inductances as shown in the figure below. Subsequently integrated circuits will be easily realized.

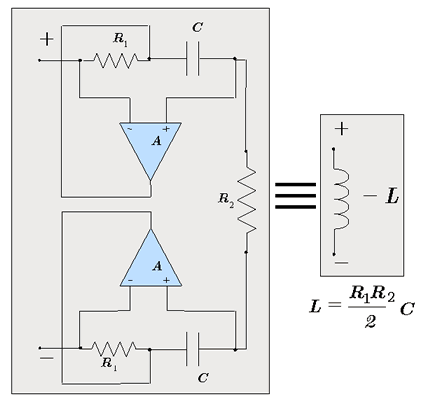

The electric circuit simulating the inductance is due to Antoniou and is based on the following scheme:

Acting on the resistive elements the inductance value can be easily modified.
